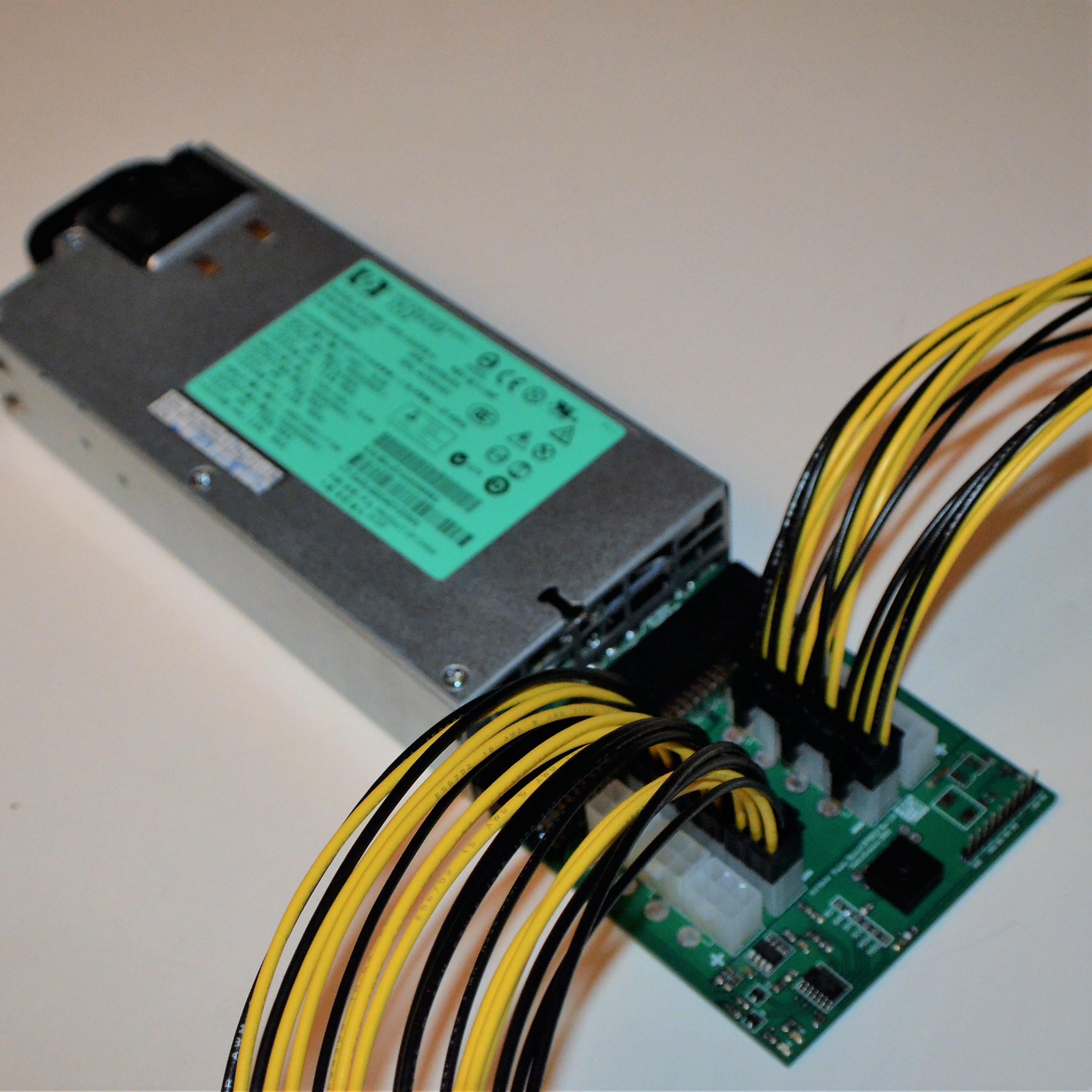

Complete Power Bundle
THIS IS A COMPLETE KIT
(Power Supply / Break out Board / 6 24″ PCIe cables)
1200 watts of power can be used to power many different things from riser cards to GPU’s. The GekkoScience Breakout Board provides 12 PCI-E plugs, are 4-layer PCB with 2oz copper and uninterrupted power planes, designed, manufactured and sold from the United States. The PCIe Cables are made of high quality 16 AWG stranded Copper THHN wires. These cables are Capable of 12 amps and 400 watts per cable and come in 6 pin +2 output.
Out of stock
THIS IS A COMPLETE KIT
(Power Supply / Break out Board / 6 24″ PCIe cables, 6pin or 8pin, your choice.)
HP DPS-1200FB Power supply
HP 94% efficient 1200 watt max common slot power supply. The HP DPS-1200FB uses the common slot power connect allowing to to be used by miners with most standard Break-out-boards. Depending on the power used, the HP DPS-1200FB can output 3 different “max” outputs. When connected to 100v (Japan) the system will offer 800 watts of total power, 120V offers 900 watts of power but when connected to 220V power, the system will offer a max output of 1200 watts.
1200 watts of power can be used to power many different things from riser cards to GPU’s.
- Part Number: 438202-002
- Model: DPS-1200FB A
- Type: Server Power Supply
- Wattage: 1200W
- Compatibility: HP BLc3000, HP C3000 GS, DL160 G5, DL180 E5310, HP DL180 G5 E5420, DL580 G5, DL785 G5, HP SE1101 L5420, StorageWorks MDS600 – 438202-002 440785-001 441830-001 Fully tested
The 80 PLUS Platinum difference
The 80 PLUS program was created in 2004 through a joint effort between Ecova and the Electric Power Research Institute (EPRI). It provides incentives for consumers (commercial and residential) and manufacturers to buy and sell high-efficiency power solutions to lower power costs and waste while reducing plug loads on overburdened power grids. The certification enables customers worldwide to use the most efficient power supplies available. In addition, ENERGY STAR® v1.0 requires a minimum of 80 PLUS Silver certification (89 percent power efficiency at 50 percent load). HP Platinum Plus power supplies provide up to 94 percent efficiency (at 50 percent load), vastly exceeding ENERGY STAR requirements. And now, HP offers power supplies rated for Titanium level certification with efficiency of up to 96 percent.
Reduce your power costs and reclaim power capacity
Power expenses can account for more than 50 percent of the data center OPEX budget. An increase in power efficiency can save your enterprise thousands, or possibly millions, of dollars annually. New Common Slot power supplies can provide a savings of up to 60W per server by minimizing power waste and reducing power requirements. When combined with new low voltage, high performance HP SmartMemory, you can reduce overall data center power requirements by up to 10 percent 3 (compared to HP ProLiant G6 power estimates). Because HP Common Slot Power Supplies are available in multiple output options, they can be right-sized for individual server configurations. That helps you recover “trapped” power capacity by reducing over-provisioning of server power, allowing you to improve overall compute density by reallocating saved power within the data center.

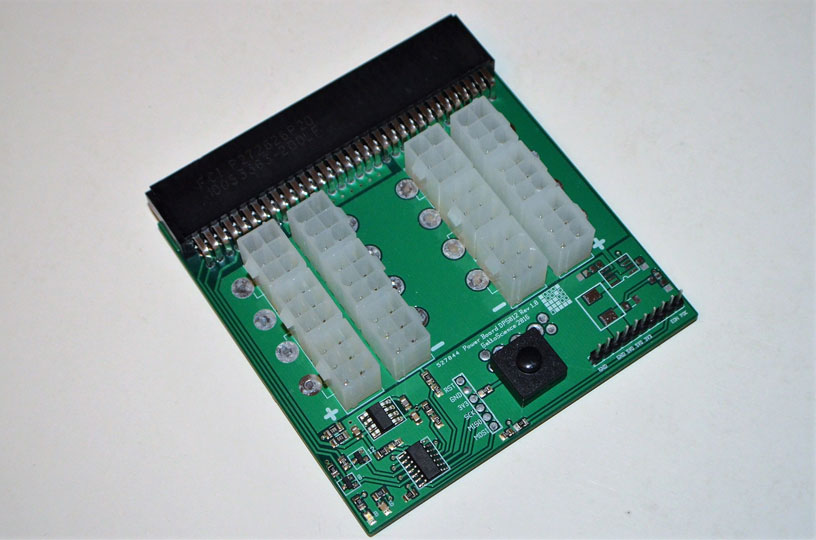

Break Out Board
The GekkoScience Breakout Board for HP DPS-800 and DPS-1200 PSUs provides 12 PCI-E plugs, Power-On, two status LEDs for standby and 12V and a standard 10-pin IO plug with POK, External On and 3.3V. These boards are 4-layer PCB with 2oz copper and uninterrupted power planes, designed, manufactured and sold from the United States.
Two or more Breakout Boards can be set up for parallel power-on using a pin contact cable between POK and EON.
Single breakout board works for both the DPS800GBA PSU (850W@120V, 1000W@240V) and the DPS1200 (1000W@120V, 1200W@240V) PSUs. These boards are built with 12x universal PCIe 6-pin terminals and can be used to power a 6pin power or a 8pin power connector using a 6+2 cable.
The breakout board has an on/off button, standard status LEDs (green standby, blue 12V), and a standard 10-pin IO header. POK and External On are functional, as well as 3.3V standby power. Current sense, current share and external fan are not connected. The PCB is the same width as the PSU, so they can line up side-by-side without wasting any space.
PCIe Power Cables
6 pack of 24 inch (2 ft) 16AWG (Heavy Duty) 6 or 8 Pin Male PCIe Power Cable for GPU Video Cards or PCIe Riser Cards. Compatible with all high end Video Cards including: AMD Radeon HD Series, Radeon R9 Series, Radeon RX400 and RX500 Series, nVidia GTX and P106 mining cards. Also compatible with Bitmain, Canaan and Spondoolies Miners.
PLEASE SPECIFY 6 pin or 8 pin
PCIe Cables are made of high quality 16 AWG stranded Copper THHN wires. These cables are Capable of 12 amps and 400 watts per cable.
- Compatibility: Bitmain Antminer S1 S3 S5; Spondoolies-Tech SP20; 12v GPU’s; 6pin Riser Cards
- Length: 24″
- High quality 16-AWG
- Stranded Copper THHN Wire
- Capable of 12amp or 400Watt
This kit DOES NOT come with wall outlet cables. You will need to purchase separately a U.S standard C13 socket type power cords(110V-120V) or a 200-240V C14 to C13 socket power cord if using on 200-240V outlet.
