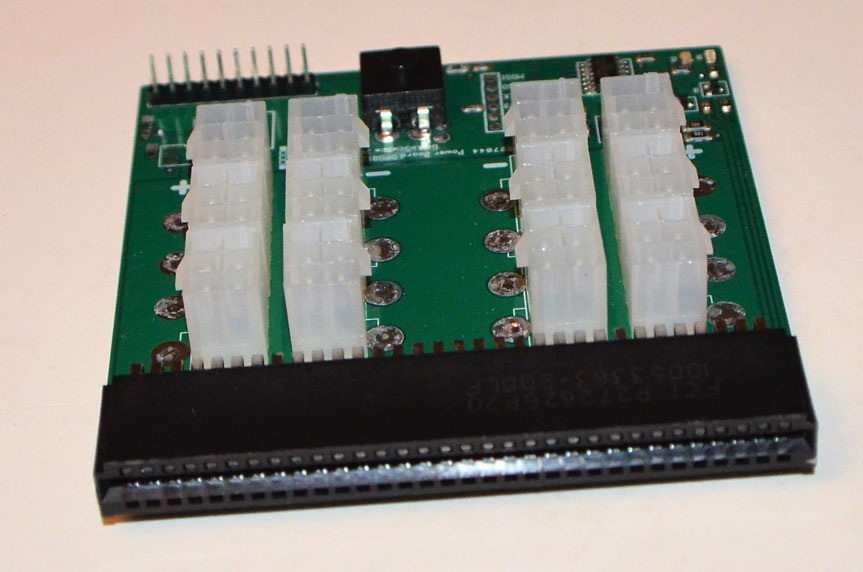

GekkoScience Common Slot Breakout Board

$34.99

The GekkoScience Breakout Board for HP DPS-800 and DPS-1200 PSUs provides 12 PCI-E plugs, Power-On, two status LEDs for standby and 12V and a standard 10-pin IO plug with POK, External On and 3.3V.

Out of stock

You must register to use the waitlist feature. Please login or create an account
SKU: GSBOB Category:

Description

The GekkoScience Breakout Board for HP DPS-800 and DPS-1200 PSUs provides 12 PCI-E plugs, Power-On, two status LEDs for standby and 12V and a standard 10-pin IO plug with POK, External On and 3.3V.

Two or more Breakout Boards can be set up for parallel power-on using a pin contact cable between POK and EON.

Single breakout board works for both the DPS800GBA PSU (850W@120V, 1000W@240V) and the DPS1200 (1000W@120V, 1200W@240V) PSUs. The board can be built with 12x PCIe 6-pin terminals and can be used to power a 6pin power or a 8pin power connector using a 6+2 cable.

The breakout board has an on/off button, standard status LEDs (green standby, blue 12V), and a standard 10-pin IO header. POK and External On are functional, as well as 3.3V standby power. Current sense, current share and external fan are not connected. The PCB is the same width as the PSU, so they can line up side-by-side without wasting any space.
